Focke-Wulf Fw 200 Condor

A four-engine airliner whose history also includes long-range maritime military service.

Meet the aircraft

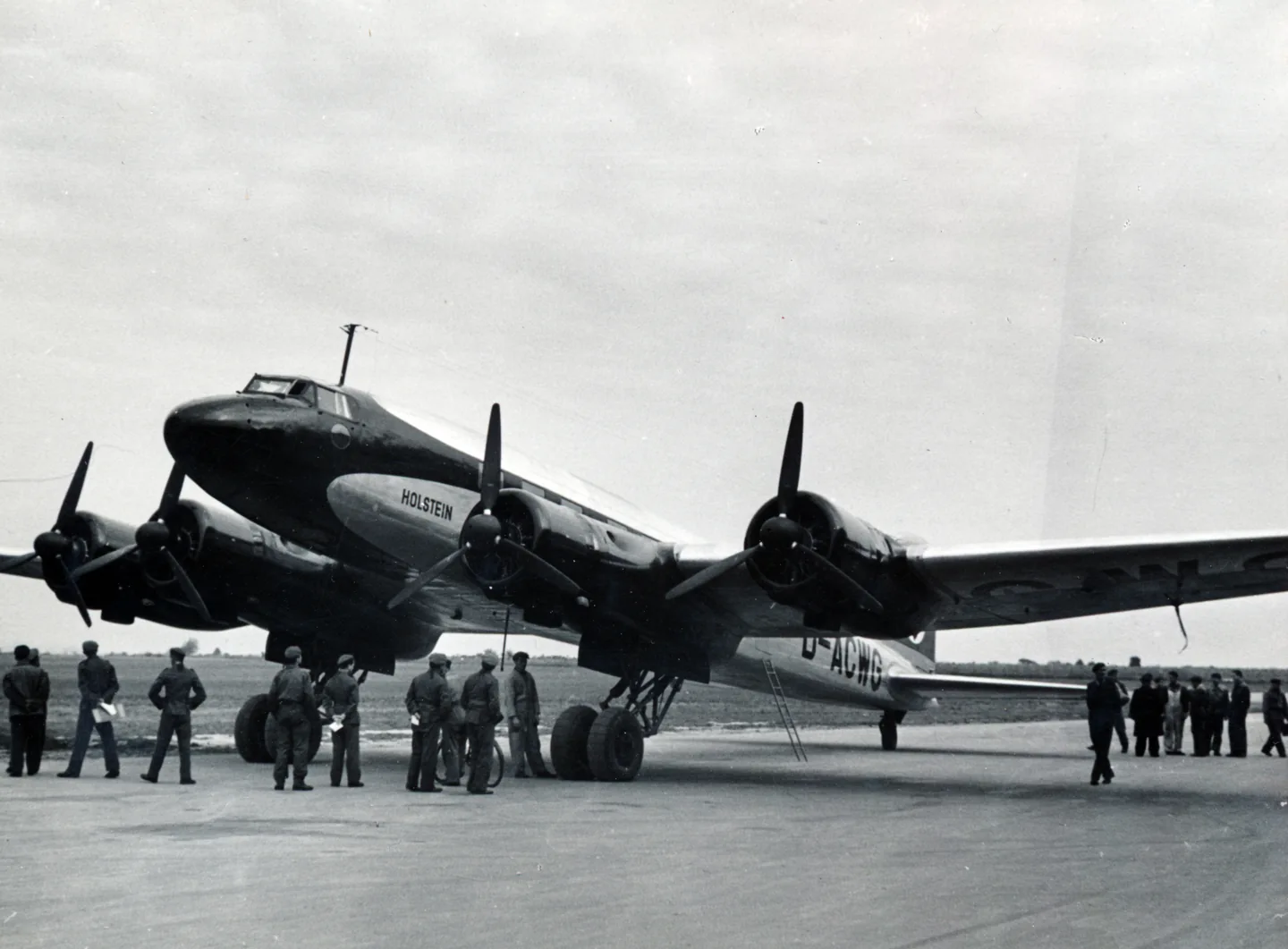

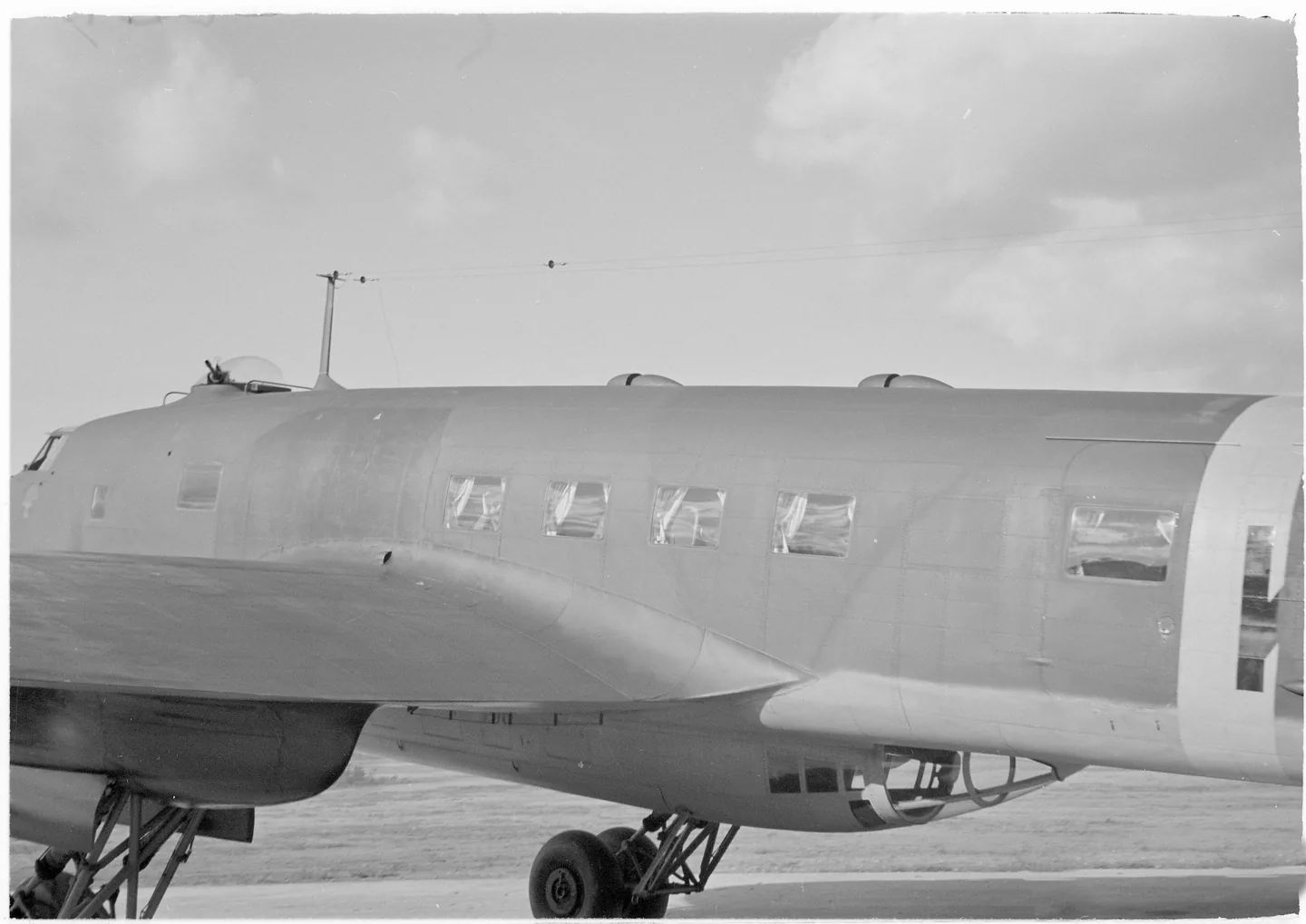

The Condor began as an all-metal transport aircraft. Its long, slim fuselage and four wing-mounted engines expressed the ambitions of late-1930s airline travel. A Berlin-to-New York demonstration flight in 1938 helped draw attention to its long-distance capability.

Military Fw 200 developments later served very different roles and carried different equipment. The photographs identify civil airliners and armed wartime variants, whose cabins and cockpits differed.

Read the full aircraft reference →

Catalogue programme-20261011-v3

FFB-BRIDGE BUILT-IN PROFILE

Focke-Wulf Fw 200 Condor

Free and ProRevision 2Partial review

Focke-Wulf Fw 200 Condor: The profile supplies its chosen large-transport resistance.

Aircraft and simulator scope

  • Focke-Wulf Fw 200 Condor · MSFS 2024 · family starting point
  • Focke-Wulf Fw 200 Condor · MSFS 2020 · family starting point

Focke-Wulf Fw 200 Condor · The simulator manual distinguishes V1/S1 and V2 aircraft, with different engine installations.

The simulator model and controls

The Condor began as an all-metal transport aircraft. Its long, slim fuselage and four wing-mounted engines expressed the ambitions of late-1930s airline travel. A Berlin-to-New York demonstration flight in 1938 helped draw attention to its long-distance capability.

This starting point selects Focke-Wulf Fw 200 Condor. Its aircraft-level settings do not select a particular developer’s custom systems.

How this profile feels

The profile supplies its chosen large-transport resistance. Spring resistance builds with the selected airspeed response. A separate aerodynamic term adds speed-dependent control load.

Pitch trim relief is independent of equipment added to armed Condor variants. Valid trim provides the configured pressure relief. Autopilot following is off.

Controls and trim

The civil Fw 200 began as a four-engine metal transport, with a long-distance Berlin–New York demonstration in 1938. Armed wartime developments later changed its mission and equipment. The civil airliner’s cockpit is the scope of its own simulator rendition.

About the values

The gains are normalized profile settings. They describe the chosen effect balance; hand force depends on the device and its output limits. IAS references are tuning values rather than operating limits. Physical acceptance of this revision remains pending.

What the documentation establishes

The simulator manual distinguishes V1/S1 and V2 aircraft, with different engine installations.

The sources describe four piston engines and retractable conventional undercarriage. Cowl-flap controls must not be treated as wing-flap evidence.

The release quotes V2 cruise at 208 mph and maximum speed at 233 mph, without an IAS basis for a force-loading reference.

Documentary review and sources

These decisions describe the documentary basis and remaining gaps for this revision. Aircraft documentation and a starting setting describe different kinds of evidence.

Flight controls
Not yet reviewed

The civil Fw 200 began as a four-engine metal transport, with a long-distance Berlin–New York demonstration in 1938. Armed wartime developments later changed its mission and equipment. The civil airliner’s cockpit is the scope of its own simulator rendition.

Starting settings and their rationale

These configured values are starting estimates. The explanations describe what each setting controls; physical validation appears separately below.

Estimated starting settings · revision 2
SettingStarting valueWhat it controls and why
Spring strengthStarting value0.74 What it controls and whyThe profile supplies its chosen large-transport resistance. The baseline spring is 0.74. Its low-speed blend reaches baseline strength at 85 KIAS.
Master force gainStarting value0.85 What it controls and whyScales overall profile strength while preserving effect balance, subject to device and output limits.
Profile force gainStarting value0.8 What it controls and whyThe aerodynamic-load gain is 0.8 with an indicated-speed reference of 170 KIAS. This supplies speed-dependent loading alongside the spring.
Force tuning speed/referenceStarting value170.0 ktWhat it controls and whySets the IAS reference for aerodynamic loading. It is an estimate, not published cruise TAS or a flight limit.
Spring response reference speedStarting value85.0 ktWhat it controls and whySets the IAS where the low-speed blend reaches baseline strength; high-speed stiffening also uses it.
Aileron force scaleStarting value0.72 What it controls and whyRoll and pitch aerodynamic scales are 0.72 and 1, respectively. They set the aerodynamic axis balance. No custom spring-travel curve is enabled.
Elevator force scaleStarting value1.0 What it controls and whyScales pitch aerodynamic loading; pitch spring travel and trim responses are separate settings.
Trim feelStarting valueEnabled What it controls and whyRetained for compatibility and group membership. Trim relief, rather than this flag, controls centre movement.
Trim reliefStarting valueEnabled What it controls and whyAllows trim relief with supported control law and valid telemetry. Axis authorities set its amount.
Autopilot followStarting valueDisabled What it controls and whyAutopilot following is off; the configured spring and load retain the hardware feel.
Autopilot neutral holdStarting valueDisabled What it controls and whyPermits centering hold during a supported AP state, separate from following a moving target.
Output force limitStarting value0.55 What it controls and whyCaps directed-force output. Native spring effects and device limits remain separate.
All 44 starting settings and their rationale

The settings define the profile’s effect balance. Device output limits affect physical hand force.

Estimated starting settings · revision 2
SettingStarting valueWhat it controls and why
Spring strengthStarting value0.74 What it controls and whyThe profile supplies its chosen large-transport resistance. The baseline spring is 0.74. Its low-speed blend reaches baseline strength at 85 KIAS.
Spring deadbandStarting value0.045 What it controls and whySets travel around the centre before the baseline spring resists. Smaller values engage it sooner.
Profile force gainStarting value0.8 What it controls and whyThe aerodynamic-load gain is 0.8 with an indicated-speed reference of 170 KIAS. This supplies speed-dependent loading alongside the spring.
Master force gainStarting value0.85 What it controls and whyScales overall profile strength while preserving effect balance, subject to device and output limits.
QBlend EnabledStarting valueEnabled What it controls and whyAllows baseline spring strength to rise with indicated airspeed where the control law permits it.
QSpring Minimum FactorStarting value0.5 What it controls and whySets low-speed spring strength as a fraction of baseline when blending is enabled. One keeps full strength.
QSpring Start KnotsStarting value20 ktWhat it controls and whySets the IAS where the low-speed spring blend starts rising. This is a feel threshold, not a flight limit.
Spring response reference speedStarting value85.0 ktWhat it controls and whySets the IAS where the low-speed blend reaches baseline strength; high-speed stiffening also uses it.
Force tuning speed/referenceStarting value170.0 ktWhat it controls and whySets the IAS reference for aerodynamic loading. It is an estimate, not published cruise TAS or a flight limit.
Airspeed spring stiffening gainStarting value0.15 What it controls and whyThe high-speed spring-stiffening gain is 0.15. It strengthens the permitted spring response above 85 KIAS, with the squared-speed ratio capped at 5.
Airspeed spring stiffening limitStarting value5 What it controls and whyLimits the squared airspeed ratio used for high-speed spring stiffening; it is not a device-force cap.
Aileron force scaleStarting value0.72 What it controls and whyRoll and pitch aerodynamic scales are 0.72 and 1, respectively. They set the aerodynamic axis balance. No custom spring-travel curve is enabled.
Elevator force scaleStarting value1.0 What it controls and whyScales pitch aerodynamic loading; pitch spring travel and trim responses are separate settings.
Output force limitStarting value0.55 What it controls and whyCaps directed-force output. Native spring effects and device limits remain separate.
Trim feelStarting valueEnabled What it controls and whyRetained for compatibility and group membership. Trim relief, rather than this flag, controls centre movement.
Trim reliefStarting valueEnabled What it controls and whyAllows trim relief with supported control law and valid telemetry. Axis authorities set its amount.
Elevator AuthorityStarting value0.3 What it controls and whyPitch trim relief is independent of equipment added to armed Condor variants. Pitch authority 0.3 provides load relief and permitted centre movement; roll authority is 0.
Aileron AuthorityStarting value0 What it controls and whyScales supported roll-trim relief and permitted centre movement. Zero removes roll response.
Force Trim EnabledStarting valueDisabled What it controls and whyEnables local force trim, separate from aircraft-owned trim and add-on integration qualification.
GLoad EnabledStarting valueEnabled What it controls and whyAllows load-factor changes to modify permitted spring laws. Passive fly-by-wire feel can suppress it.
Rate Damping EnabledStarting valueEnabled What it controls and whyEnables rate damping with the configured coefficients and control law.
Autopilot followStarting valueDisabled What it controls and whyAutopilot following is off; the configured spring and load retain the hardware feel.
Autopilot follow authorityStarting value0.1 What it controls and whySets admitted AP-follow gain, not a percentage of travel. Runtime ownership and input limits still apply.
Autopilot neutral holdStarting valueDisabled What it controls and whyPermits centering hold during a supported AP state, separate from following a moving target.
Autopilot neutral hold strengthStarting value0.6 What it controls and whySets admitted AP neutral-hold strength; inactive while neutral hold is disabled.
EnabledStarting valueEnabled What it controls and whyEnables aerodynamic cues; each still needs nonzero strength and its simulator conditions.
GainStarting value0.35 What it controls and whySets stall-buffet strength. Zero removes the cue without changing simulator stalls or warnings.
GainStarting value0 What it controls and whySets high-Mach buffet strength; onset and full-strength thresholds are separate.
GainStarting value0.14 What it controls and whySets flap buffet at the configured position and speed gates. Flap movement texture is separate.
Maximum flap indexStarting value3 What it controls and whySets the final flap index for detent normalization. UP plus three detents uses maximum index3.
Minimum flap indexStarting value2 What it controls and whySets the first flap detent that admits buffet; this is a handle index, not degrees.
GainStarting value0.1 What it controls and whySets gear aerodynamic buffet; movement and ground-contact cues are separate.
Shaker EnabledStarting valueDisabled What it controls and whyPermits shaker at supported warning conditions; the switch does not establish aircraft equipment.
Stick shaker amplitudeStarting value0.5 What it controls and whySets triggered shaker strength; inactive while the shaker feature is disabled.
EnabledStarting valueEnabled What it controls and whyEnables ground effects; each still needs its own strength and contact or motion telemetry.
GainStarting value0.4 What it controls and whySets rolling texture strength, modified by speed, surface and undercarriage configuration.
GainStarting value0.25 What it controls and whySets gear-bump texture during ground motion, separate from touchdown impact.
GainStarting value0.65 What it controls and whySets landing-impact strength; landing telemetry and response shape determine the pulse.
GainStarting value0 What it controls and whySets reverse-thrust vibration with valid reverser and engine conditions. Zero removes the cue.
EnabledStarting valueEnabled What it controls and whyEnables engine cues with nonzero settings and valid running-engine telemetry.
GainStarting value0.12 What it controls and whySets estimated engine vibration using configured telemetry and response, not measured cockpit vibration.
EnabledStarting valueEnabled What it controls and whyEnables accessory cues with configured strengths and observed accessory movement.
GainStarting value0.12 What it controls and whySets texture from observed flap movement; a command without movement does not establish the cue.
GainStarting value0.12 What it controls and whySets texture from observed gear movement, separate from aerodynamic and touchdown effects.
Limits and open questions
  • The manual's cockpit guide does not establish primary-control boost, linkage or force gearing.
  • An applicable trim mechanism is not explained in the retained manual.
  • Course indicators refer to automatic flight, but do not establish the complete installed autopilot or external following behavior.
  • Neither source defines external control, trim or autopilot status signals.
  • No measured control-force or vibration data appears in the retained Fw 200 sources.
  • Focke-Wulf Fw 200 Condor documentary evidence does not establish force-feedback hardware acceptance.

Physical validation

No physical force validation is recorded in this public catalogue for this revision. Documentary review and software checks do not establish how a particular device feels.

FFB-Bridge maintains this profile’s revisions and tuning discussion.

Revision 2 and download availability in FFB-Bridge ↗
Exact profile identity
Profile
airframe-focke-wulff-fw-200-condor
Artifact SHA-256
a0cd5ef2842454d37d8bdd0d2ad2b72e37e698ede215023f3de33421e1b8360e
Bytes
12691
Spring strength
Forces.SpringStrength
Spring deadband
Forces.SpringDeadband
Profile force gain
Forces.ForceGain
Master force gain
Forces.MasterGain
QBlend Enabled
Forces.QBlendEnabled
QSpring Minimum Factor
Forces.QSpringMinimumFactor
QSpring Start Knots
Forces.QSpringStartKnots
Spring response reference speed
Forces.QSpringFullKnots
Force tuning speed/reference
Forces.CruiseSpeedRefKnots
Airspeed spring stiffening gain
Forces.SpringAirspeedStiffenGain
Airspeed spring stiffening limit
Forces.SpringAirspeedStiffenCap
Aileron force scale
Forces.AileronForceScale
Elevator force scale
Forces.ElevatorForceScale
Output force limit
Forces.MaxOutputForce
Trim feel
StickFeel.TrimFeelEnabled
Trim relief
StickFeel.TrimReliefEnabled
Elevator Authority
StickFeel.TrimRelief.ElevatorAuthority
Aileron Authority
StickFeel.TrimRelief.AileronAuthority
Force Trim Enabled
StickFeel.ForceTrimEnabled
GLoad Enabled
StickFeel.GLoadEnabled
Rate Damping Enabled
StickFeel.RateDampingEnabled
Autopilot follow
Autopilot.FollowEnabled
Autopilot follow authority
Autopilot.FollowAuthority
Autopilot neutral hold
Autopilot.NeutralHoldEnabled
Autopilot neutral hold strength
Autopilot.NeutralHoldStrength
Enabled
Aero.Enabled
Gain
Aero.Stall.Gain
Gain
Aero.Mach.Gain
Gain
Aero.Flap.Gain
Maximum flap index
Aero.Flap.MaxFlapIndex
Minimum flap index
Aero.Flap.MinFlapIndex
Gain
Aero.Gear.Gain
Shaker Enabled
Aero.ShakerEnabled
Stick shaker amplitude
Aero.Shaker.Amplitude
Enabled
Ground.Enabled
Gain
Ground.Rumble.Gain
Gain
Ground.Bumps.Gain
Gain
Ground.Thump.Gain
Gain
Ground.Reverse.Gain
Enabled
Engine.Enabled
Gain
Engine.Rumble.Gain
Enabled
Mechanical.Enabled
Gain
Mechanical.FlapMotion.Gain
Gain
Mechanical.GearMotion.Gain
